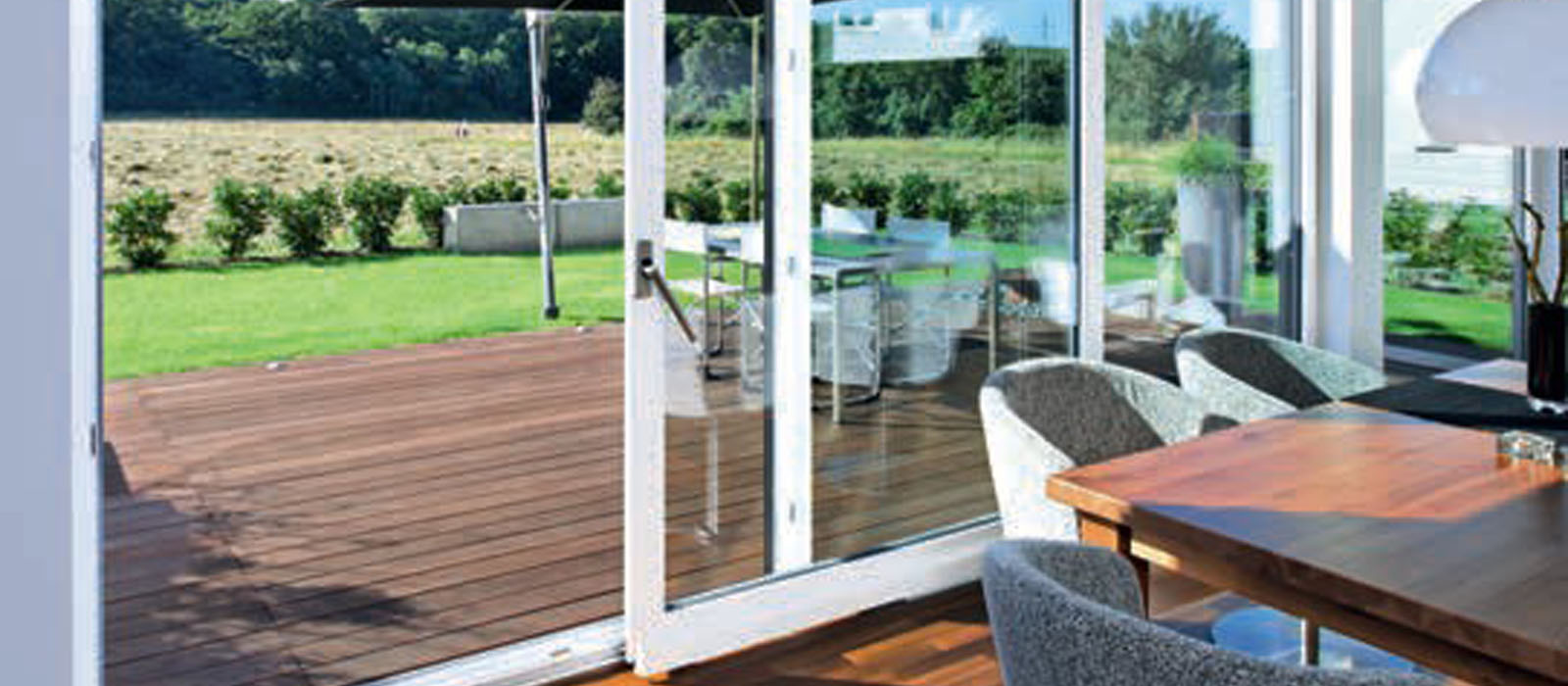

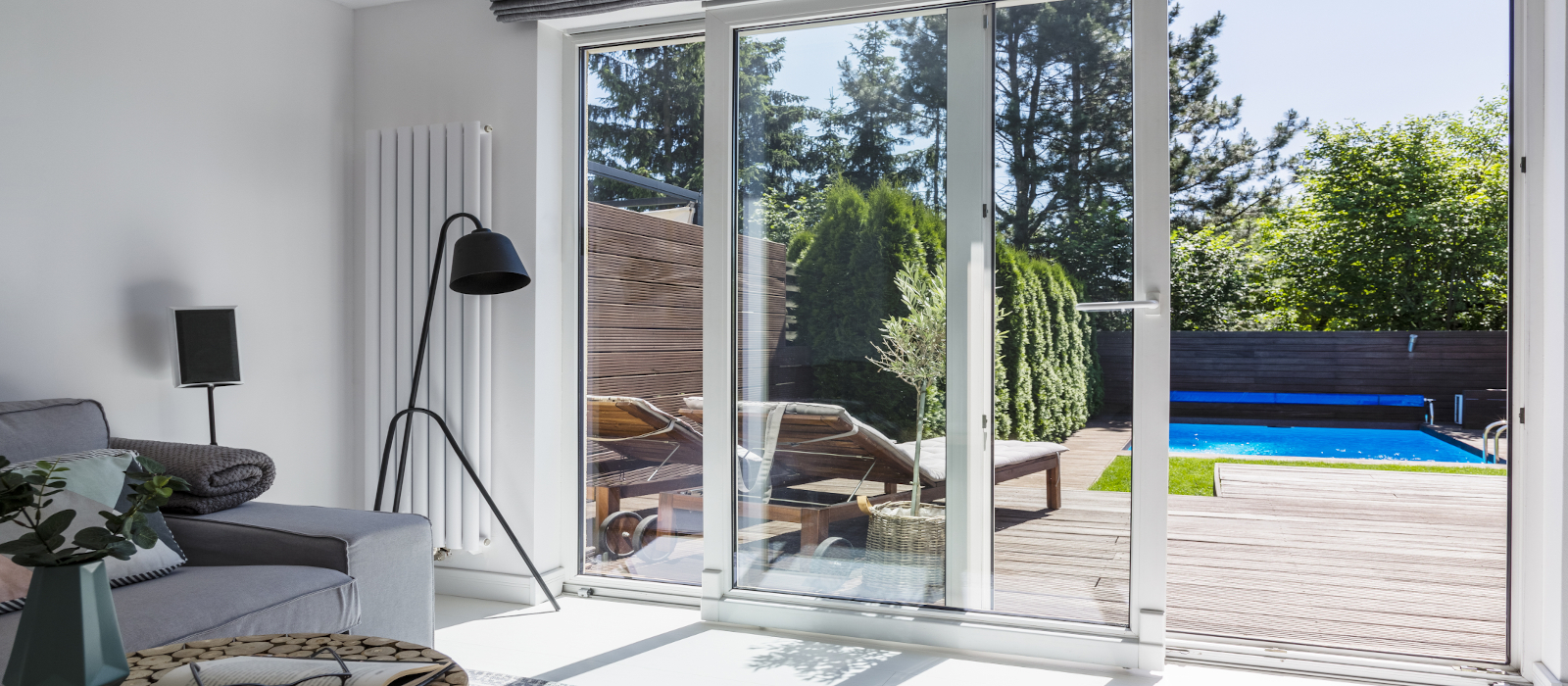

PSK sliding doors with tilt function
PSK doors are the optimal combination of sliding doors and tilt and turn windows, ensuring comfortable use and it is easy-to-use. For ventilation, the vent can be easily tilted or draw in front of the frame out and moved. The profile system in the LivIng or Corona CT70 system allows to obtain a seamless apperance and character of the windows in all rooms.
PSK doors can be an alternative to traditional double-vents balconies. It is an ideal solution in places where the use of other solutions is not possible. In this case, the open door leaf takes up no space inside the house.
For Schüco LivIng System
- the standard frame height is 80 mm, and the vent 110 mm,
- door vents in two stylistic variants: Classic and Rondo,
- technology of aesthetic corner joining at an angle of 45 degrees,
- modern design of glazing beads.
Installation depth 82 mm
Number of chambers 7
Glazing package Ug=0,5
Permeation coefficient Uw=0,68*
Fittings Siegenia
For Schüco Corona CT70 System
- standard frame height is 78 mm, and vent 103 mm,
- door vents in two stylistic variants: Classic and Rondo,
- technology of aesthetic corner joining at an angle of 45 degrees,
- modern design of glazing beads.
Installation depth 70 mm
Number of chambers 5
Galzing package Ug=0,6
Permeation coefficient Uw=0,91*
Fittings Siegenia
